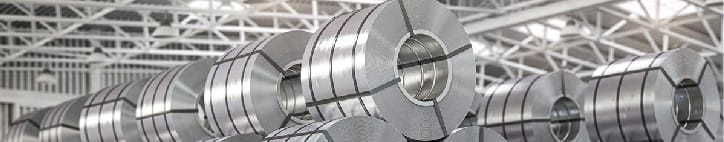

1050 aluminum coil is a wrought, commercially pure aluminum product containing at least 99.5% aluminum.
It belongs to the 1000 series alloys, known for excellent corrosion resistance, high electrical and thermal conductivity, and outstanding formability, but with relatively low mechanical strength.It cannot be strengthened by heat treatment—only by cold working—and is available in tempers such as O, H12, H14, H16, H18, H22, H24, etc.
Typical thickness ranges from about 0.10 mm to 8 mm, with widths up to about 2650 mm.Surface finishes include mill finish, polished, brushed, embossed, anodized, or coated (e.g., PVDF, polyester), and it is produced according to standards like ASTM B209, EN 573, EN 485, JIS H4000, and GB/T 3880.
Because of its ductility and conductivity, it’s widely used in electrical components, chemical equipment, signage, decorative materials, and heat exchangers.
Specifications of 1050 Aluminum Coils
| Alloy |
1050,1070,1100,1100,3003,5052,6061 |
| Equivalent Name |
AA1050, EN AW-1050A, Al99.5, A91050 |
| Temper |
O, H12, H14, H16, H18, H19, H22, H24, H26, H28 |
| Thickness |
0.10 – 8.0 mm (common: 0.2 – 6 mm) |
| Width |
20 – 2650 mm (common: 500 – 2500 mm) |
| Coil(ID) |
150 mm, 300 mm, 505 mm (customized available) |
| Coil (OD) |
Usually ≤ 2000 mm (depending on weight & thickness) |
| Surface Finish |
Mill finish, polished, brushed, embossed, anodized, coated (PVDF, PE, PVC film, etc.) |
| Shape |
Coil / Strip / Roll |
| Standards |
ASTM B209, EN 573, EN 485, ISO 6361, JIS H4000, GB/T 3190, GB/T 3880 |
| Payment Methods |
T/T, L/C, Western Union (varies by supplier) |
| Packaging |
Standard seaworthy export packing: plastic film + waterproof paper + steel sheet + wooden pallet/crate |
| Applications |
Electrical conductors, chemical equipment, signage, decorative panels, lighting reflectors, heat exchangers, HVAC, building cladding |

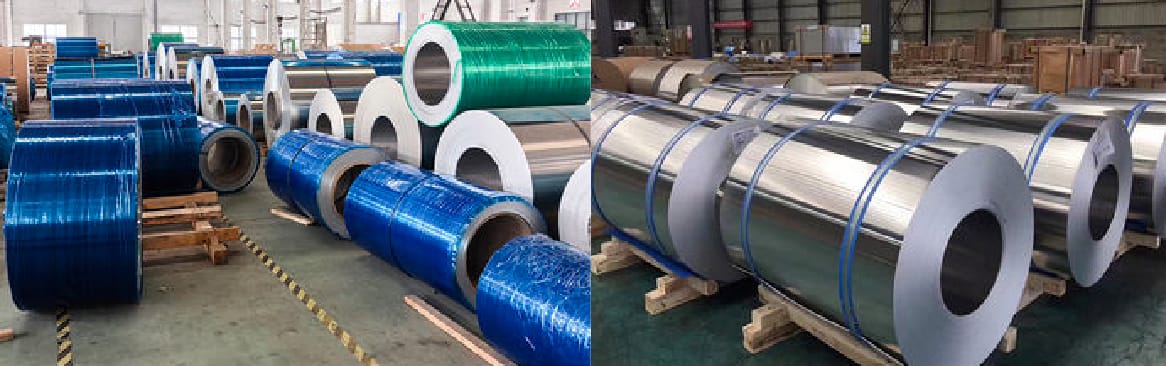

Stock list of 1050 Aluminum Coils
| Thickness (mm) |
Width (mm) |
Tempers / Finish |
| 0.10 – 0.50 |
400 – 1600 |
Various; for CTP/PS plates |
| 0.12 – 0.50 |
600 – 1500 |
O – H112; mill-finish |
| 0.15 – 6.0 |
Custom widths |
Not specified |
| 0.20 – 8.0 |
500 – 2500 (or custom) |
Not specified |
| 0.2 – 8.0 |
20 – 2300 (custom) |
O, H12, H14, H16, H18, H22, H24, H26 |
| 0.20 – 600 (note: wide range) |
1000, 1200, 1500, or custom |
Brushed, mirror, embossed, color-coated, anodized |
If you need customization or bulk purchase, please contact us directly. Quick Quote
ZGGDMETAL 1050 Aluminum Coil Chemical Composition
(Standards: ASTM B209 / EN 573 / GB/T 3190)
| Element |
Content (%) |
| Al |
≥ 99.50 |
| Si |
≤ 0.25 |
| Fe |
≤ 0.40 |
| Cu |
≤ 0.05 |
| Mn |
≤ 0.05 |
| Mg |
≤ 0.05 |
| Zn |
≤ 0.07 |
| Ti |
≤ 0.05 |
| Others (each) |
≤ 0.03 |
| Others (total) |
≤ 0.15 |
ZGGDMETAL 1050 Aluminum Coil Mechanical Properties
| Temper |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
| O |
70 – 100 |
≥ 20 |
35 – 40 |
| H12 |
95 – 130 |
≥ 60 |
20 – 25 |
| H14 |
110 – 145 |
≥ 95 |
7 – 12 |
| H16 |
125 – 160 |
≥ 115 |
5 – 10 |
| H18 |
145 – 180 |
≥ 135 |
3 – 5 |
What Temper can ZGGDMETAL provide for 1050 aluminum coil?
ZGGDMETAL can provide 1050 aluminum coil in a full range of tempers, including O, H12, H14, H16, H18, H19, H22, H24, H26, and H28, covering both soft annealed and various hard cold-worked conditions to suit different processing and application needs.
What are 1050 aluminum coils used for?
1050 aluminum coils are widely used in applications that require excellent corrosion resistance, high electrical and thermal conductivity, and good formability but do not demand high strength. Typical uses include electrical conductors and busbars, chemical processing equipment, heat exchangers, HVAC components, signage and advertising panels, decorative and architectural cladding, lighting reflectors, kitchen utensils, and various industrial sheet-metal parts.
What are the characteristics of 1050 aluminum coil?
What services and advantages does ZGGDMETAL offer as a professional aluminum coil manufacturer?”
ZGGDMETAL offers a complete production service for aluminum coils, controlling the entire process from casting to final packaging to ensure consistent quality. Services and advantages include:
-
Fast production and on-time delivery to meet urgent project schedules.
-
Competitive wholesale pricing for bulk aluminum coil orders.
-
Global supply capability with full export documentation and logistics support.
-
Responsive customer service available 24/7 for technical inquiries and order updates.
